| Ref |
OEM |
Part Name |
Req |
Each
|
|
1 |
23040-034 |
Turn Signal
Lamp Assy (includes parts highlighted in
gray) |
4 |
$29.99 |
|
1 |
23040-034 |
Used KZ900 Turn Signal Lamp
Assy |
4 |
$12.99 |
| 2 |
220E0435A |
Screw-Pan Head, 4x35 |
8 |
Hardware |
| 3 |
23058-002 |
Washer-Plain, 4mm |
8 |
Hardware |
| 4 |
23048-1024 |
Lens-Signal Lamp (see
below for photo)
also fits these models.
Z1 KZ900 KZ1000. |
4 |
$5.99 |
| 5 |
23050-002 |
Gasket, Turn Signal Lamp |
4 |
|
| 6 |
92069-055 |
Bulb 12v 32cp |
4 |
$3.10 |
| 7 |
112G0630 |
Bolt-Upset |
4 |
Hardware |
| 8 |
411B0600 |
Washer Plain 6mm |
4 |
Hardware |
| 9 |
461F0600 |
Washer Spring 6mm |
4 |
Hardware |
| 10 |
311B0600 |
Nut 6mm |
4 |
Hardware |
|
11 |
23078-001
 |
Bracket-Turn
Signal Lamp (chrome stem) |
4 |
$12.99 |
|
11 |
23078-001 |
Used Bracket-Turn Signal
Lamp (chrome stem) |
4 |
Kits |
|
12 |
92075-128 |
Damper Rubber |
4 |
$4.99 |
| 13 |
92027-147 |
Collar |
2 |
|
| 14 |
92075-158 |
Damper Rubber, Signal Lamp |
2 |
|
| |
|
Collar & Damper Rubber, Signal Lamp
- sold as a set, Ref# 13 & 14. |
2 |
$11.99 |
|
15 |
26011-063 |
Lead Wire,
Signal Lamp |
2 |
|
|
16 |
92022-239 |
Washer,
Plain |
2 |
Hardware |
|
17 |
461F1000 |
Washer Spring
10mm |
2 |
Hardware |
|
18 |
315B1000 |
Nut 10mm |
4 |
Hardware |
|
Kits
|
|
$32.99
|
Turn
Signal Assembly 23040-034
One-wire, single filament bulb. Replaces OEM part number
23040-034 for front & rear signals for 73-75 Z1,
76-77 KZ900 A B, 77-81 KZ1000 A B C, 72-76
750 H2, KZ750 B1-B4. See
Turn
Signals.
See all
Kawasaki models this
fits. |
|
$24.99
|
Turn Signal
Assembly 23040-054
One-wire, single filament bulb. Replaces OEM part number
23040-054 for front signals for KZ900 B & KZ1000
B. See all
Kawasaki models this
fits. |
|
$29.99
|
Turn Signal Assembly 23040-1004
Two-wire, dual filament bulb. Front signals
KZ1000 B1 B2 B3 B4 G1 K1 K2 M1 M2, KZ1100
L1, KZ440 A1 A2 A 3 A4 D1-D5, KZ550 C1-C4
F1 F2 M1, KZ650 D1 D1A D2 E1 H1 H2 H3, KZ750
F1 H1-H4 K1 K2 M1. See all
Kawasaki models this
fits. Includes bulb and lens,
as shown. |
|
23048-1024
$5.99 each
|
Turn Signal
Lens 23048-1024
Fits front for Z1, KZ900 and rear for KZ1000 & other
Kawasaki
models. |
23048-1001
$5.99 each |
Turn Signal
Lens 23048-1001
Fits front for Z1 KZ900 or rear for KZ1000 & other
KZ models. |
 |

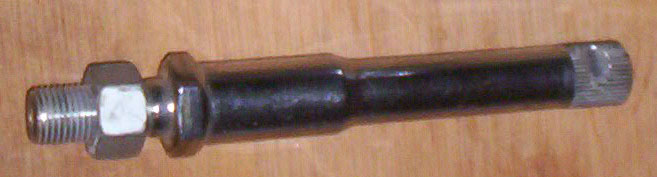

Turn Signal
short Stem (chrome), Used
$4.99 each
Fits front or rear for Z1 KZ900 KZ1000 & other
KZ models, These stems are half the length as
the ones shown in the picture, only 2 available,
1 is lighty pitted, 1 has black paint on it comes right
off with steel wool. |
 |

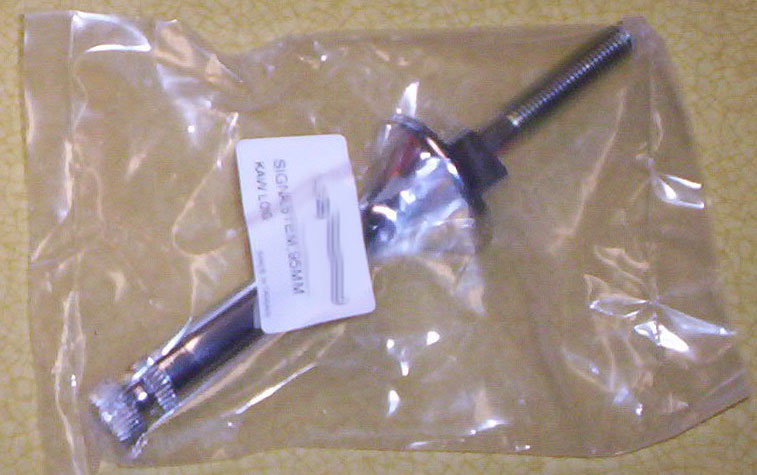

Turn Signal
Stem (chrome), Used
$5.99 each Fits any
vintage motorcycles. Only 1 available
in good condition. Looks like a Honda turn signal stem. |
